hamacs/ha-capturing-notes.org

Capturing Notes with Org

A literate programming file for configuring org for capturing notes.

Introduction

Capturing (or collecting) notes from files, browsers, and meetings, is a great way to get organized.

I even have external commands that kick-off the capturing process, and without a command this is what gets called:

  (setq org-capture-default-template "cc")

Let's now define my templates.

Templates

To make sure we can execute this code anytime, let's define the variable that will hold all the templates:

  (defvar org-capture-templates (list))

Some templates put the information in front of other information (as opposed to the default of appending), so I define a helper function:

  (defun ha-first-header ()
    (goto-char (point-min))
    (search-forward-regexp "^\* ")
    (beginning-of-line 1)
    (point))

General Notes

Capturing text into the org-default-notes-file is something I don't do much:

  (add-to-list 'org-capture-templates
               '("n" "Thought or Note"  entry
                 (file org-default-notes-file)
                 "* %?\n\n  %i\n\n  See: %a" :empty-lines 1))
  (add-to-list 'org-capture-templates
               '("w" "Website Announcement" entry
                 (file+function "~/website/index.org" ha-first-header)
                 (file "~/.spacemacs.d/templates/website-announcement.org")
                 :empty-lines 1))

Before we go too far, we should create a publishing file for the website announcement, and something for the journal.

Clock in Tasks

Org has one task at a time that can be clocked in keeping a timer. I use that as a destination for collecting notes. For instance, capturing with a c allows me to enter details under that task without switching to it:

  (add-to-list 'org-capture-templates
               '("c" "Currently clocked in task"))

The default is just to type information to the current clocked-in task using c c:

  (add-to-list 'org-capture-templates
               `("cc" "Item to Current Clocked Task" item
                 (clock)
                 "%?" :empty-lines 1))

We can select a region and copy that using c r:

  (add-to-list 'org-capture-templates
               `("cr" "Contents to Current Clocked Task" plain
                 (clock)
                 "%i" :immediate-finish t :empty-lines 1))

If we have copied anything into the clipboard, that information can be add to the current task using c k:

  (add-to-list 'org-capture-templates
               `("ck" "Kill-ring to Current Clocked Task" plain
                 (clock)
                 "%c" :immediate-finish t :empty-lines 1))

Instead, if I am looking at some code, I can copy some code from a region, but use a helper function to create a link to the original source code using c f:

  (add-to-list 'org-capture-templates
               `("cf" "Code Reference with Comments to Current Task"
                 plain (clock)
                 "%(ha-org-capture-code-snippet \"%F\")\n\n   %?"
                 :empty-lines 1))

If I want a reference to the code, without any comments, I call c l:

(add-to-list 'org-capture-templates
             `("cl" "Link to Code Reference to Current Task"
               plain (clock)
               "%(ha-org-capture-code-snippet \"%F\")"
               :empty-lines 1 :immediate-finish t))

Capture Helper Functions

To have a capture back-ref to a function and its code, we need to use this:

  (require 'which-func)

This helper function given a code type and the function, analyzes the current buffer in order to collects data about the source code file. It then creates a nice-looking template:

  (defun ha-org-capture-fileref-snippet (f type headers func-name)
    (let* ((code-snippet
            (buffer-substring-no-properties (mark) (- (point) 1)))
           (file-name   (buffer-file-name))
           (file-base   (file-name-nondirectory file-name))
           (line-number (line-number-at-pos (region-beginning)))
           (initial-txt (if (null func-name)
                            (format "From [[file:%s::%s][%s]]:"
                                    file-name line-number file-base)
                          (format "From ~%s~ (in [[file:%s::%s][%s]]):"
                                  func-name file-name line-number
                                  file-base))))
      (format " %s

  ,#+begin_%s %s
    %s
  ,#+end_%s" initial-txt type headers code-snippet type)))

For typical code references, we can get the label for Org's SRC block by taking the major-mode and removing the -mode part. We can then call the formatter defined above:

  (defun ha-org-capture-code-snippet (f)
    "Given a file, F, this captures the currently selected text
  within an Org SRC block with a language based on the current mode
  and a backlink to the function and the file."
    (with-current-buffer (find-buffer-visiting f)
      (let ((org-src-mode (replace-regexp-in-string "-mode" "" (format "%s" major-mode)))
            (func-name (which-function)))
        (ha-org-capture-fileref-snippet f "src" org-src-mode func-name))))

Let's assume that we want to copy some text from a file, but it isn't source code, then this function makes an EXAMPLE of it.

  (defun ha-org-capture-clip-snippet (f)
    "Given a file, F, this captures the currently selected text
  within an Org EXAMPLE block and a backlink to the file."
    (with-current-buffer (find-buffer-visiting f)
      (ha-org-capture-fileref-snippet f "example" "" nil)))

Code Capturing Functions

To call a capture for code, let's make two interactive functions, one copies the information, and the other pulls up a capturing window for comments:

  (defun ha-code-to-clock (&optional start end)
    "Send the selected code to the current clocked-in org-mode task."
    (interactive)
    (org-capture nil "cl"))

  (defun ha-code-comment-to-clock (&optional start end)
    "Send the selected code (with comments) to the current clocked-in org-mode task."
    (interactive)
    (org-capture nil "cf"))

And a less-disruptive keybinding:

  (ha-leader "C" '("capture code" . ha-code-to-clock))
  (ha-leader "o C" '("capture code" . ha-code-comment-to-clock))

External Capturing

Using emacsclient, the operating system or other applications can trigger a call to capture content into Emacs. I started with the functions from this essay, which made a nice approach to opening and closing a frame:

  (defun start-capture-frame ()
    "Create a new frame and run `org-capture'."
    (interactive)
    (make-frame '((name . "capture")
                  (top . 300)
                  (left . 700)
                  (width . 80)
                  (height . 25)))
    (select-frame-by-name "capture")

    ;; I am always in fullscreen mode for Emacs, so it doesn't always honor
    ;; the original settings specified above.
    ;; (when (...)
    ;;   (toggle-frame-fullscreen))

    (delete-other-windows)
    (flet ((switch-to-buffer-other-window (buf) (switch-to-buffer buf)))
      (org-capture)))

  (defadvice org-capture-finalize
      (after delete-capture-frame activate)
    "Advise capture-finalize to close the frame."
    (if (equal "capture" (frame-parameter nil 'name))
        (delete-frame)))

  (defadvice org-capture-destroy
      (after delete-capture-frame activate)
    "Advise capture-destroy to close the frame."
    (if (equal "capture" (frame-parameter nil 'name))
        (delete-frame)))

Which can have an external shell script:

  /usr/local/bin/emacsclient -s work -n -e "(start-capture-frame)"

Pull MacOS-Specific Content

The org-mac-link project makes it easy to tell Emacs to retrieve information from other apps, e.g. the URL of the opened tab in Firefox.

  (use-package org-mac-link
    :straight (:host gitlab :repo "aimebertrand/org-mac-link")
    :config
    (ha-leader "i" '("insert app info" . org-mac-link-get-link)))

We then call org-mac-link-get-link to select the app, which then get the information from the app, and inserts it at point. While this is nice, it seems to be the wrong order. As we see something we like, say in Firefox, then we go into Emacs and hit SPC i. What about an approach where we stay in Firefox. In other words, send the information, perhaps using org-capture.

Push MacOS-Specific Content

I’m use ICanHazShortcut to have a keybinding trigger a script (every simple). For instance:

  /usr/bin/osascript ~/bin/emacs-capture-clock.scr

But the following Applescript does the work:

  tell application "System Events" to set theApp to name of first application process whose frontmost is true

  -- Macintosh HD:Applications:iTerm.app:
  if "iTerm" is in theApp then
    set function to "ha-external-capture-code-to-org"
  else
    set function to "ha-external-capture-to-org"
  end if

  tell application "System Events" to keystroke "c" using command down

  set command to "/usr/local/bin/emacsclient -s work -e '(" & function & ")'"
  do shell script command

  -- Tell me it worked and what it did, since this runs in the background
  say "Capture complete"

Now we have some goodies on the clipboard, and the script uses emacsclient to call these functions to put those contents into clocked in task.

  (defun ha-external-capture-to-org ()
    "Calls `org-capture-string' on the contents of the Apple clipboard."
    (interactive)
    (org-capture-string "" "ck")
    (ignore-errors
      (delete-frame)))

Oh, and it this is from the Terminal program, let’s wrap it in a block:

  (defun ha-external-capture-code-to-org ()
    "Calls `org-capture-string' on the contents of the Apple clipboard."
    (interactive)
    (let ((contents (format "#+begin_example\n%s\n#+end_example" (ha-org-clipboard))))
      (message contents)
      (org-capture-string contents "cc"))
    (ignore-errors
      (delete-frame)))

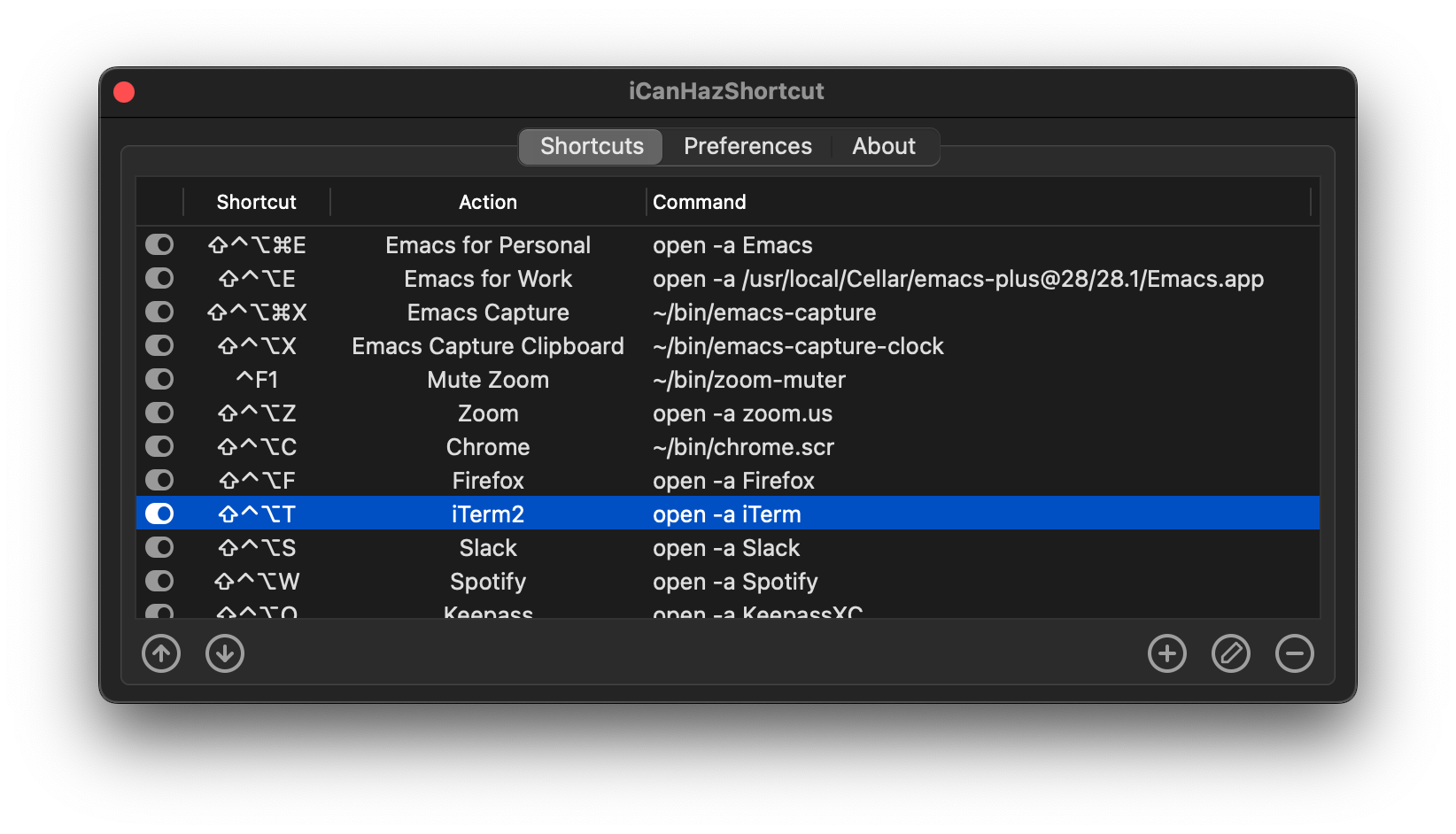

Configure the ICanHazShortcut shortcuts to call these scripts, as in this screenshot:

Push Terminal Results

I use this en script to copy command line output into the Emacs-based engineering notebook to the current clocked-in task. I have two use cases.

First, at the end of a pipe sequence. For instance, this example is what I would type and see in the Terminal:

$ openstack server list --format json | jq '.[1].Networks' | en -f js
{
  "cedev13": [
    "10.158.12.169"
  ]
}

But the output, along with being displayed, is also copied into my org file as:

#+begin_src js
{
  "cedev13": [
    "2.158.12.169"
  ]
}
#+end_src

Second, if I want more information about the command, I can begin the command with en, as in:

$ en -f js -n "The output from server list" openstack server list --format json

Which puts the following in my org file:

The output from server list
#+begin_src sh
openstack server list --format json
#+end_src

#+results:
#+begin_src js
[
  {
    "ID": "36bf4825-fc5b-4414-8758-4f8523136215",
    "Name": "kolladev.cedev13.d501.eng.pdx.wd",
    "Status": "ACTIVE",
    "Networks": {
      "cedev13": [
        "2.158.12.143"
      ]
    },
    "Image": "fde6ba50-7b14-4821-96fe-f5b549adc6d3",
    "Flavor": "163"
  },
  {
  …

Here is the script I tangle to ~/bin/en:

  #  Interface to my Engineering Notebook.
  #
  #  I use this script as the last pipe entry on the command line, to
  #  display the output, and also copy the output into the Emacs-based
  #  engineering notebook to the current clocked-in task.
  #
  #  Use the script as a 'runner' of a command as this script passes
  #  any extra command line options directly to the shell.

  function usage {
      echo "$(basename $0) [ -t header-title ] [ -n notes ] [ -f format ] [ command [ arguments ] ]"
      exit 1
  }

  while getopts "t:n:f:" o
  do  case "$o" in
          t)  TITLE="$OPTARG";;
          n)  NOTE="$OPTARG";;
          f)  FORMAT="$OPTARG";;
          [?]) usage;;
      esac
  done
  shift $(expr $OPTIND - 1)

  COMMAND=$*
  FILE=$(mktemp)

  function process_output {
      cat -v $1 | sed 's/\^\[\[[0-9][0-9]*\(;[0-9][0-9]*\)*m//g'
  }

  # The script can either take a command specified as arguments (in
  # which case, it will run that), or it will assume all data is coming
  # from standard in...

  if [ -z "$COMMAND" ]
  then
      # All data should be coming from standard in, so capture it:
      tee $FILE
  else
      # Otherwise, we need to run the command:
      ${COMMAND} | tee $FILE
  fi

  # Either way, let's process the results stored in the file:
  RESULTS=$(process_output $FILE)

  function output {
      if [ -n "$TITLE" ]
      then
          echo "*** ${TITLE}"
      fi
      if [ -n "$NOTE" ]
      then
          echo "${NOTE}"
      fi
      if [ -n "$COMMAND" ]
      then
          echo "#+begin_src sh"
          echo "${COMMAND}"
          echo "#+end_src"
          echo
          echo "#+results:"
      fi
      if [ -n "$FORMAT" ]
      then
          echo "#+begin_src ${FORMAT}"
          echo "${RESULTS}"
          echo "#+end_src"
      else
          echo "#+begin_example"
          echo "${RESULTS}"
          echo "#+end_example"
      fi
  }

  if which pbcopy 2>&1 >/dev/null
  then
      output | pbcopy
  else
      output | xclip
  fi

  # Now that the results are on the clipboard, the `c k` capture
  # sequence calls my "grab from the clipboard" capture template:
  emacsclient -s work -e '(org-capture-string "" "ck")' >/dev/null

  rm -f $FILE

Keybindings

Along with kicking off the org-capture, I want to be able to clock-in and out:

  (with-eval-after-load 'ha-org
    (ha-org-leader
      "X" '("org capture" . org-capture)
      "c"  '(:ignore t :which-key "clocks")
      "c i" '("clock in" . org-clock-in)
      "c l" '("clock in last" . org-clock-in-last)
      "c o" '("clock out" . org-clock-out)
      "c c" '("cancel" . org-clock-cancel)
      "c d" '("mark default task" . org-clock-mark-default-task)
      "c e" '("modify effort" . org-clock-modify-effort-estimate)
      "c E" '("set effort" . org-set-effort)
      "c g" '("goto clock" . org-clock-goto)
      "c r" '("resolve clocks" . org-resolve-clocks)
      "c R" '("clock report" . org-clock-report)
      "c t" '("eval range" . org-evaluate-time-range)
      "c =" '("timestamp up" . org-clock-timestamps-up)
      "c -" '("timestamp down" . org-clock-timestamps-down)))
